Technical Parameters

Model: NP 10

Top & bottom feed

• Voltage: 110V
• Main motor power: 800W
• Feeding motor 25w
• Knife speed: 1100-2100rap/min
• Machine size: 1200*550*1190mm

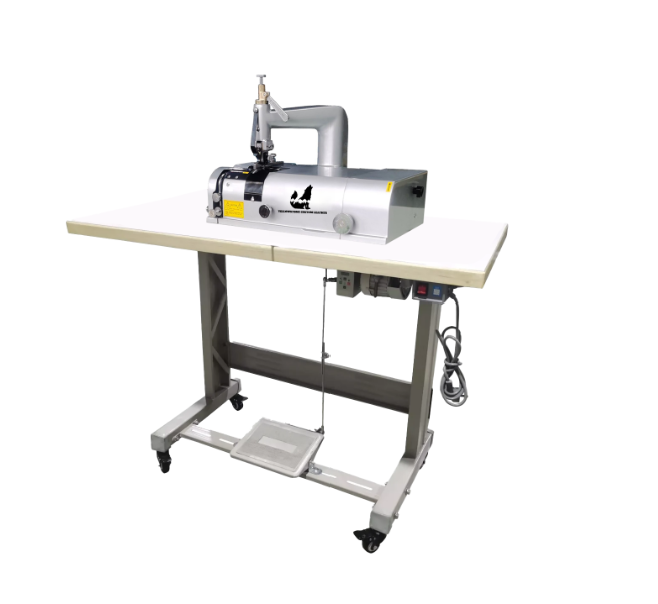

Bell skiver Machine Features:

NP10 leather skiving machine is suitable for trimming various high-grade leather products, high-grade leather, EVA, foam, rubber and other materials.

Using the latest technology, precision design, high precision, the accuracy reaches 0.01mm., the cutting effect is uniform and smooth, the thickness range: 0.1-10mm.

The bevel and angle required for cutting materials can be easily adjusted through the presser foot and feeding wheel.

By replacing the presser feet of different specifications, the required trimming effect and width can be achieved. The maximum width for flat cutting is 50mm.

Servo motor, which is quiet and energy-saving. The speed can be adjusted as needed. Speed ​​adjustment value: 300-2500 rap/minute.

ALLOW 4-8 WEEKS FOR DIRECT DELIVERY FROM CHINA

PRODUCTS MAY BE SUBJECT TO TARIFF FEES WHICH ARE NOT INCLUDED OR REIMBURSED.
